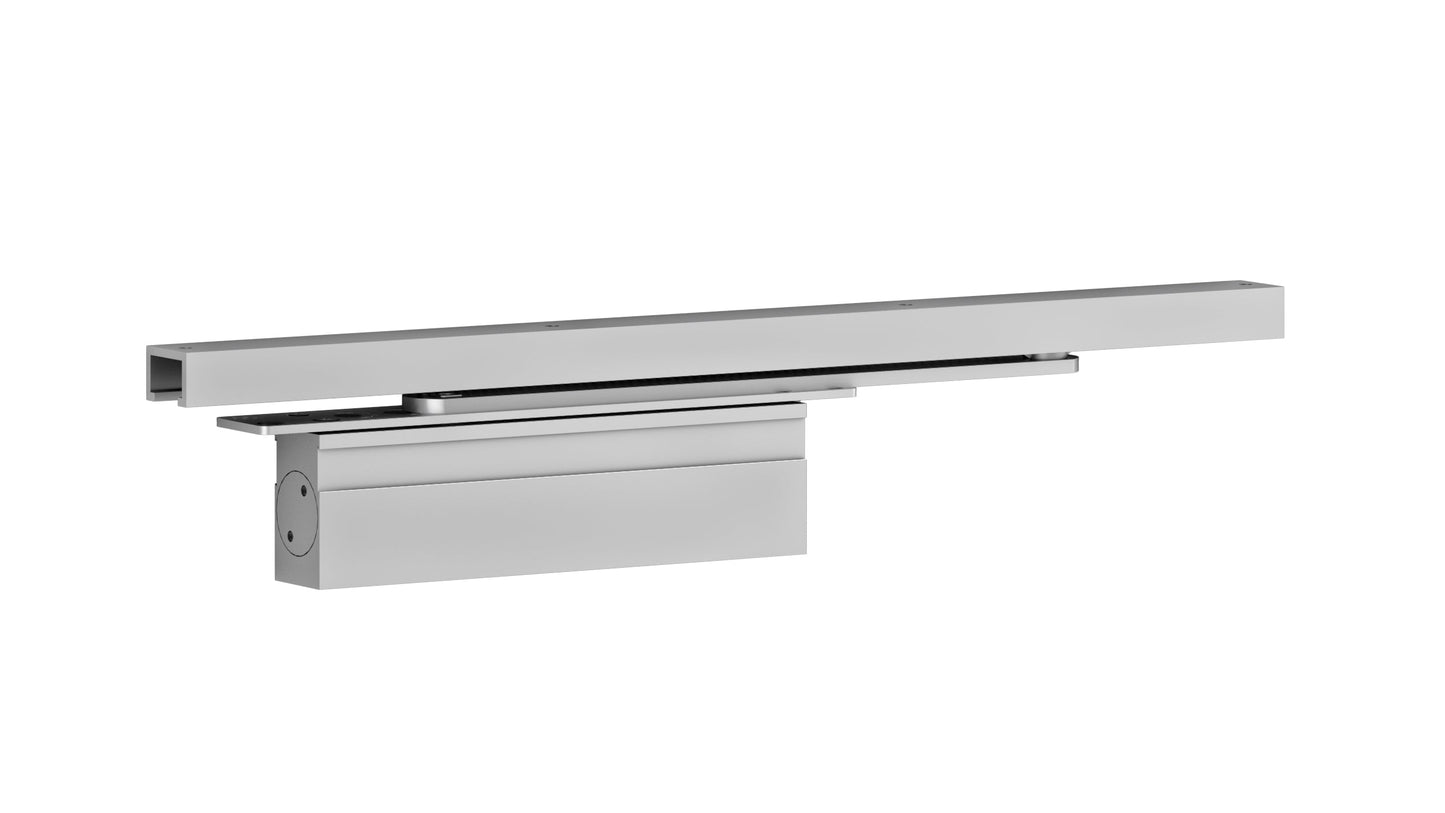

Union SC-CE3F Size 3 Cam Action Concealed Over Head Door Closer

 The SC-CE3F is a concealed cam action door closer with a fixed power size of EN 3. It has been designed with adjustable closing and latching speed and is ideal in environments where superior aesthetics are needed or reduced vandalism. Thanks to its slimline profile it also is quick to install. A guide rail dampener is available to purchase with the SC-CE3F. It has also been tested to UKCA, EN 1154, and fire rated for timber doors FD30 and FD60 as well as metal doors up to FD240. However, it must be fitted with the appropriate intumescent for fire door applications.

 Union SC-CE3F high efficiency concealed over head door closer is a non intrusive door closer hidden within the door leaf and is a perfect opton for residential buildings where a self closing fire rated door closer is required.

CE marked and fire tested for timber doors, the SC-CE3F helps to meet the requirements of the Republic Of Ireland building regulations for domestic dwellings (Technical Guidance Doc B). Acheving these standards mean they are suitable for use on commercial dwellings also.

• Price Includes Vat

• Option Available For 30minute Doors, 60 Minute Doors and Closer Only

• Small Profile For Quick Fitting

• Tested To BSEN1154

• BSEN 1634 Part 1:2000 assessed for use on 30/60 minute timber fire doors

• Fixed power size 3

• Helps meet the door force requirements of Part M

• Built in pressure relief valve protects against abuse

• Stable hydraulic fluid offers low sensitivity to temperature flucation

• Needle bearings giving optimal performance and efficiency

• 10 year guarantee
